Fine-scale Identification of the Most Likely Source of a Human Plague Infection

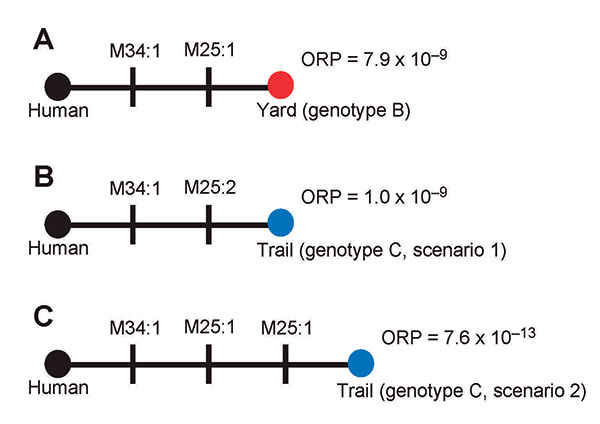

Figure 2. Alternate infection source hypotheses for the plague cases in the persons who visited New York, New York, USA. Closed circles indicate genotypes; black, red, and blue circles indicate genotypes A, B, and C, respectively. Individual mutations are indicated as vertical lines on the comparisons and are labeled with the locus that mutated and the number of repeats involved in the mutations. Overall relative probabilities (ORP) based on Yersinia pestis mutation rates are presented for each comparison.
