Volume 16, Number 12—December 2010

Synopsis

Cyprinid Herpesvirus 3

Benjamin Michel, Guillaume Fournier, François Lieffrig, Bérénice Costes, and Alain VanderplasschenComments to Author
Author affiliations: Author affiliations: University of Liège, Liège, Belgium (B. Michel, G. Fournier, B. Costes, A. Vanderplasschen); Centre d'Economie Rurale Groupe, Marloie, Belgium (F. Lieffrig)

Main Article

Figure 2

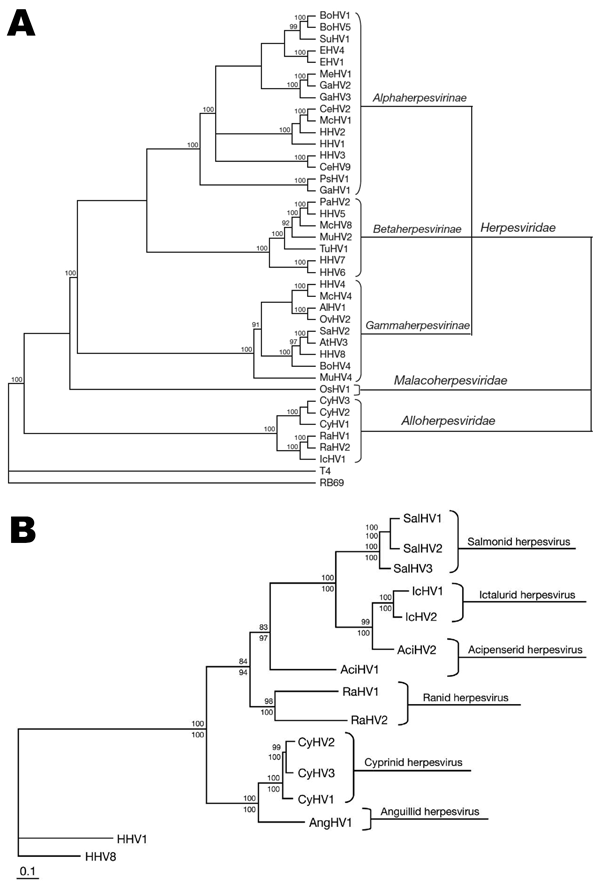

A) Cladogram depicting relationships among viruses in the order Herpesvirales, based on the conserved regions of the terminase gene. The Bayesian maximum-likelihood tree was rooted by using bacteriophages T4 and RB69. Numbers at each node represent the posterior probabilities (values >90 shown) of the Bayesian analysis. B) Phylogenetic tree depicting the evolution of fish and amphibian herpesviruses, based on sequences of the DNA polymerase and terminase genes. The maximum-likelihood tree was

Figure 2. A) Cladogram depicting relationships among viruses in the order Herpesvirales, based on the conserved regions of the terminase gene. The Bayesian maximum-likelihood tree was rooted by using bacteriophages T4 and RB69. Numbers at each node represent the posterior probabilities (values >90 shown) of the Bayesian analysis. B) Phylogenetic tree depicting the evolution of fish and amphibian herpesviruses, based on sequences of the DNA polymerase and terminase genes. The maximum-likelihood tree was rooted with 2 mammalian herpesviruses (human herpesviruses 1 and 8). Maximum-likelihood values >80 and Bayesian values >90 are indicated above and below each node, respectively. Scale bar indicates branch lengths, which are based on the number of inferred substitutions. AlHV-1, alcelaphine herpesvirus 1; AtHV-3, ateline herpesvirus 3; BoHV-1, -4, -5, bovine herpesviruses 1, 4, 5; CeHV-2, -9, cercopithecine herpesviruses 2, 9; CyHV-1, -2, cyprinid herpesviruses 1, 2; EHV-1, -4, equid herpesvirus 1, 4; GaHV-1, -2, -3, gallid herpesvirus 1, 2, 3; HHV-1, -2, -3, -4, -5, -6, -7, -8, human herpesvirus 1, 2, 3, 4, 5, 6, 7, 8; IcHV-1, ictalurid herpesvirus 1; McHV-1, -4, -8, macacine herpesvirus 1, 4, 8; MeHV-1, meleagrid herpesvirus 1; MuHV-2, -4, murid herpesvirus 2, 4; OsHV-1, ostreid herpesvirus 1; OvHV-2, ovine herpesvirus 2; PaHV-1, panine herpesvirus 1; PsHV-1, psittacid herpesvirus 1; RaHV-1, -2, ranid herpesvirus 1, 2; SaHV-2, saimiriine herpesvirus 2; SuHV-1, suid herpesvirus 1; and TuHV-1, tupaiid herpesvirus 1. Adapted with permission from Waltzek et al. (6).
