Livestock-associated Methicillin-Resistant Staphylococcus aureus Sequence Type 398 in Humans, Canada

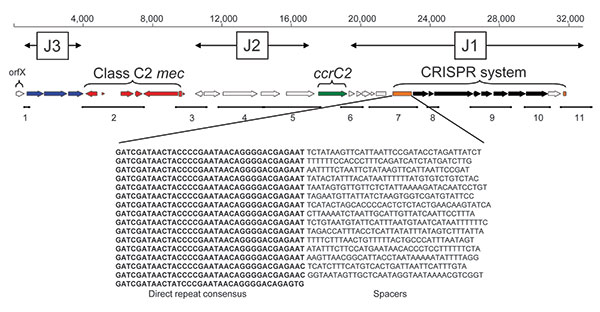

Figure 3. Schematic of the novel staphylococcal cassette chromosome (SCC) mecV subtype and DNA sequence of the clustered regularly interspaced short palindromic repeat (CRISPR) array identified in Staphylococcus aureus isolate 08 BA 02176. Red and green arrows represent mec and ccr complexes, respectively. Blue arrows represent 3 open reading frames (ORFs) in the J3 region sharing sequence identity with chromosomal genes of S. epidermidis RP62A. Orange boxes indicate confirmed and questionable CRISPRs. Black arrows represent CRISPR-associated genes. Location of primer sets used for coverage of this SCCmec element are numbered 1–11 (Table 4) and illustrated as solid lines. Shown below the schematic is the DNA sequence of the confirmed 1,107-bp CRISPR array in the J1 region, which provides the 36-bp direct repeat consensus (boldface) and the variable 15 spacer sequences.
