Volume 20, Number 5—May 2014

Dispatch

Francisella tularensis subsp. tularensis Group A.I, United States

Dawn N. Birdsell, Anders Johansson, Caroline Öhrman, Emily Kaufman, Claudia Molins, Talima Pearson, Miklós Gyuranecz, Amber Naumann, Amy J. Vogler, Kerstin Myrtennäs, Pär Larsson, Mats Forsman, Andreas Sjödin, John D. Gillece, James Schupp, Jeannine M. Petersen, Paul Keim, and David M. WagnerComments to Author
Author affiliations: Northern Arizona University, Flagstaff, Arizona, USA (D.N. Birdsell, E. Kaufman, T. Pearson, A. Naumann, A.J. Vogler, P. Keim, D.M. Wagner); Umeå University, Umeå, Sweden (A. Johansson); Swedish Defense Research Agency, Umeå (C. Öhrman, K. Myrtennäs, P. Larsson, M. Forsman, A. Sjödin); Centers for Disease Control and Prevention, Fort Collins, Colorado, USA (C. Molins, J.M. Petersen); Center for Agricultural Research, Hungarian Academy of Sciences, Budapest, Hungary (M. Gyuranecz); Translational Genomics Research Institute, Flagstaff (J. Gillece, J. Schupp, P. Keim)

Main Article

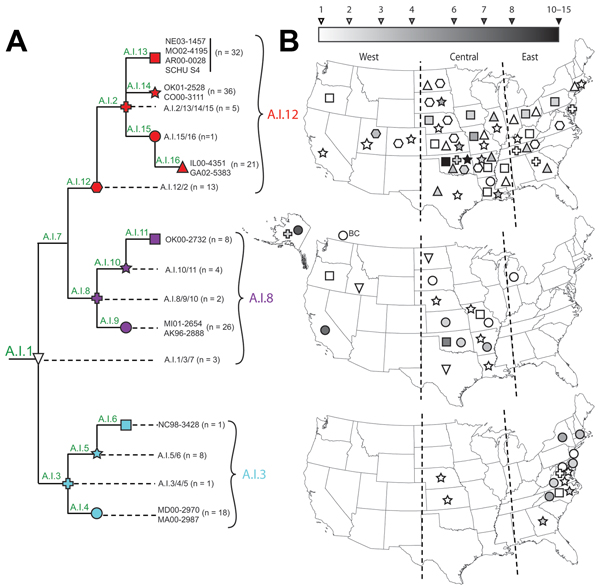

Figure 2

Geographic alignment of 179 geographically diverse Francisella tularensis subsp. tularensis A.I strains, by subgroup, United States. A) Canonical single-nucleotide polymorphism (canSNP) topology of 15 intervening and terminal subpopulations defined by screening of 16 canSNPs. Colors indicate major subgroups within A.I: red, A.I.12; purple, A.I.8; blue, A.I.3. Subpopulations are indicated by symbols; n values indicate number of strains assigned to each subpopulation. B) Geographic distribution of

Figure 2. Geographic alignment of 179 geographically diverse Francisella tularensis subsptularensis A.I strains, by subgroup, United StatesA) Canonical single-nucleotide polymorphism (canSNP) topology of 15 intervening and terminal subpopulations defined by screening of 16 canSNPsColors indicate major subgroups within A.I: red, A.I.12; purple, A.I.8; blue, A.I.3Subpopulations are indicated by symbols; n values indicate number of strains assigned to each subpopulationB) Geographic distribution of strains from the 15 subpopulations, shown by corresponding symbols as in panel A and aligned by subgroup (top, A.I.12; middle, A.I.8; bottom, A.I.3)Vertical lines indicate boundaries of the 3 regions: western, central, and easternSubgroups are mapped on the basis of geographic origin at the state levelGradients correspond to number of strains associated with each symbol (i.e., darker symbols indicate a higher number of strains)The basal A.I.1/3/7 subgroup (inverted triangle) cannot be meaningfully assigned to 1 of the 3 main subgroups; thus, this subgroup is arbitrarily represented on the A.I.8 mapBC, British Columbia, Canada.
