Volume 22, Number 1—January 2016
Dispatch
Effectiveness of Ring Vaccination as Control Strategy for Ebola Virus Disease
Figure 1

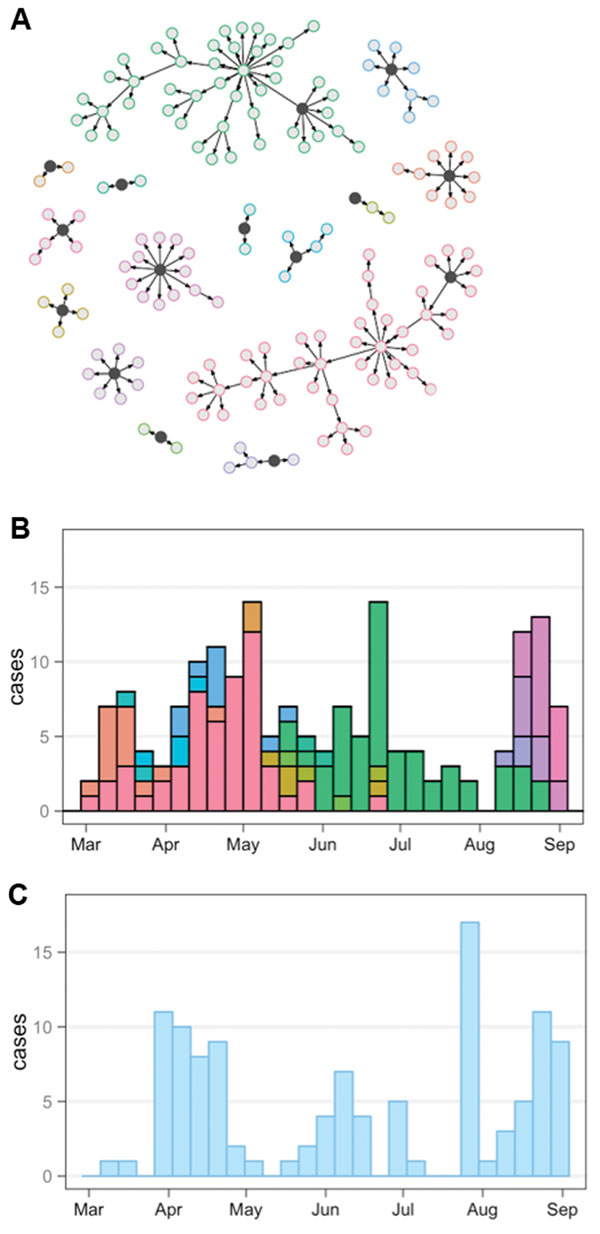

Figure 1. Outbreak dynamics in a model of transmission of Ebola virus disease. A) Chains of transmission generated in a simulated outbreak starting with 2 infected persons on March 1, 2014. Black circles indicate the index case within each cluster, and arrows indicate routes of transmission. Within each cluster, we assumed that there was a 15% probability that a secondary case would be missed and would instead seed a new cluster (these missed links are not shown). B) New cases per week, by date of symptom onset, for the chains of transmission shown in panel A. Colors of clusters in panel A match colors of bars in panel B. C) Observed weekly confirmed and probable cases reported in Conakry Prefecture, Guinea, during March–September 2014. Data were obtained from the Guinea Ministry of Health and World Health Organization Situation Reports (11).
References
- Wellcome Trust, Center for Infectious Disease Research and Policy. Recommendations for accelerating the development of Ebola vaccines [cited 2015 Oct 20]. http://www.wellcome.ac.uk/stellent/groups/corporatesite/@policy_communications/documents/web_document/wtp058693.pdf
- Ebola ça Suffit Ring Vaccination Trial Consortium. The ring vaccination trial: a novel cluster randomised controlled trial design to evaluate vaccine efficacy and effectiveness during outbreaks, with special reference to Ebola. BMJ. 2015;351:h3740 .PubMed
- Fenner F, Henderson DA, Arita I, Jezek Z, Ladnyi ID. Smallpox and its eradication. Geneva: World Health Organization; 1988.
- Centre for the Mathematical Modelling of Infectious Diseases. Visualisation and projections of the Ebola outbreak in West Africa [cited 2015 Oct 20]. http://cmmid.lshtm.ac.uk/ebola/
- Nielsen CF, Kidd S, Sillah AR, Davis E, Mermin J, Kilmarx PH. Improving burial practices and cemetery management during an Ebola virus disease epidemic—Sierra Leone, 2014. MMWR Morb Mortal Wkly Rep. 2015;64:20–7 .PubMed
- Camacho A, Kucharski AJ, Funk S, Breman J, Piot P, Edmunds WJ. Potential for large outbreaks of Ebola virus disease. Epidemics. 2014;9:70–8.
