Volume 29, Number 11—November 2023
Research

Environmental Persistence and Disinfection of Lassa Virus

Marlee Shaffer1, Robert J. Fischer1, Shane Gallogly, Olivia Ginn, Vincent Munster, and Kyle BibbyComments to Author
Author affiliations: University of Notre Dame, Notre Dame, Indiana, USA (M. Shaffer, O. Ginn, K. Bibby); National Institutes of Health, Hamilton, Montana, USA (R.J. Fischer, S. Gallogly, V. Munster)

Main Article

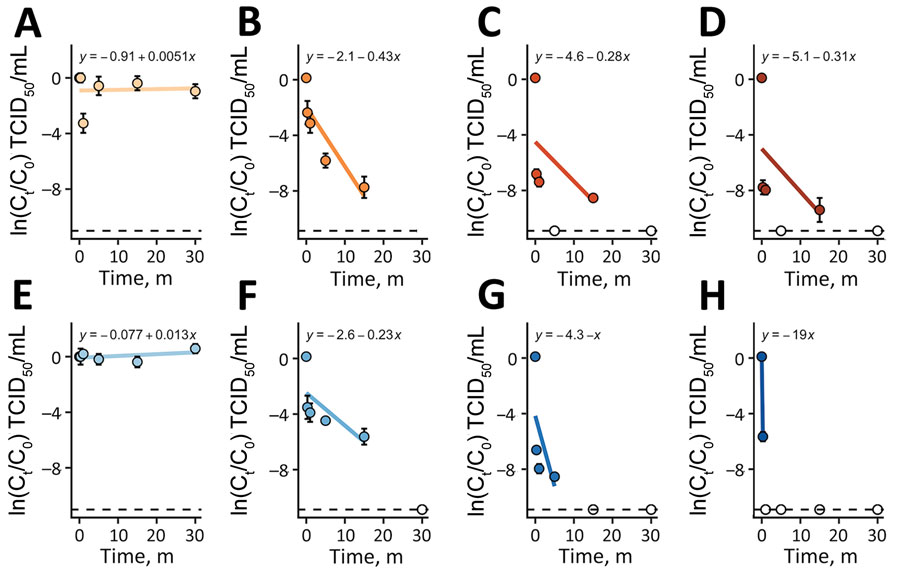

Figure 3

Virus disinfection in a study of environmental persistence and disinfection of Lassa virus. Graphs depict disinfection of Lassa virus with sodium hypochlorite in municipal wastewater. A–D) Josiah strain; E–H) Sauderwald strain. Graphs depict sodium hypochlorite concentrations of 0 mg/L (A, E), 1 mg/L (B, F), 5 mg/L (C, G), and 10 mg/L (D, H). Each plotted point represents the mean of 3 independent experimental replicates run concurrently, and the error bars show the standard deviation. Solid blue and orange lines indicate decay rates; dashed lines indicate the assay’s detection limits; hollow circles represent points below the detection limit that were not included in the regression analysis. The equation of the linear regression (y) and the R2 value are shown on the plots. All plotting, regressions, and statistical analyses were performed using R Studio 2022.07.2 (The R Foundation for Statistical Computing, https://www.r-project.org). C, initial concentration of infectious virus; Ct, concentration of infectious virus at time, t; TCID50, 50% tissue culture infectious dose.

Figure 3. Virus disinfection in a study of environmental persistence and disinfection of Lassa virus. Graphs depict disinfection of Lassa virus with sodium hypochlorite in municipal wastewater. A–D) Josiah strain; E–H) Sauderwald strain. Graphs depict sodium hypochlorite concentrations of 0 mg/L (A, E), 1 mg/L (B, F), 5 mg/L (C, G), and 10 mg/L (D, H). Each plotted point represents the mean of 3 independent experimental replicates run concurrently, and the error bars show the standard deviation. Solid blue and orange lines indicate decay rates; dashed lines indicate the assay’s detection limits; hollow circles represent points below the detection limit that were not included in the regression analysis. The equation of the linear regression (y) and the R2 value are shown on the plots. All plotting, regressions, and statistical analyses were performed using R Studio 2022.07.2 (The R Foundation for Statistical Computing, https://www.r-project.org). C, initial concentration of infectious virus; Ct, concentration of infectious virus at time, t; TCID50, 50% tissue culture infectious dose.

Main Article

1These first authors contributed equally to this article.
