Emergence of Genotype 2.3.1 Multidrug-Resistant Salmonella enterica Serovar Typhi Strain, West Africa, 2021–2025
Figure 3

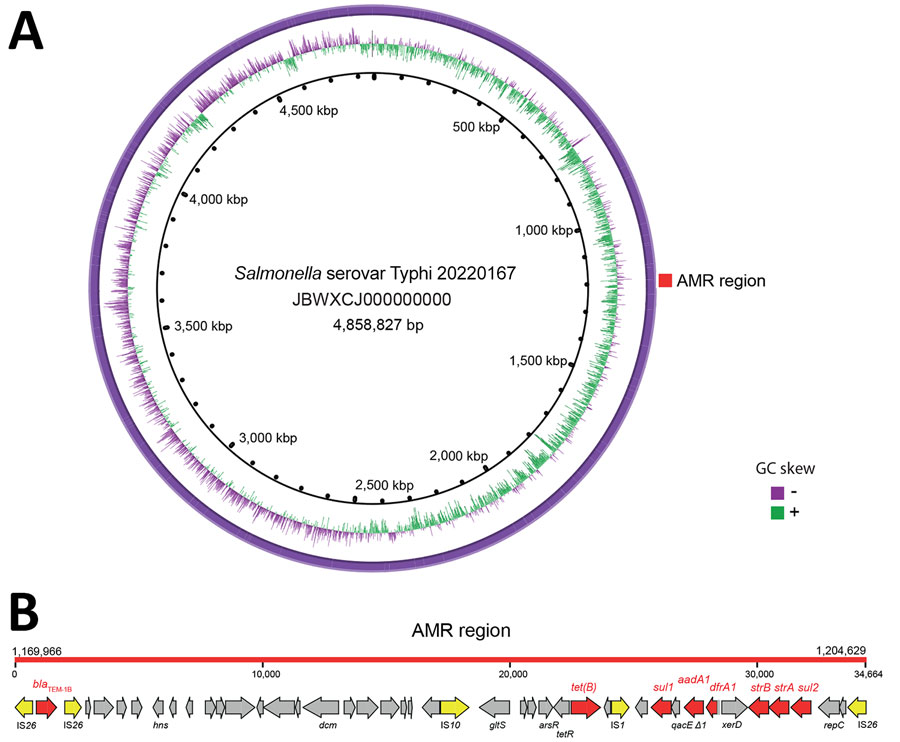

Figure 3. Chromosomal integration of an AMR region derived from an IncHI1 plasmid in in study of emergence of genotype 2.3.1 multidrug-resistant Salmonella enterica serovar Typhi strain, West Africa, 2021–2025. A) Circular representation of the complete genome of isolate 202210167, a representative isolate of the emerging strain. Red square indicates the chromosomally integrated 34,664-bp AMR region in the external ring. B) Linear representation of the integrated AMR region containing the 8 AMR genes identified in the emerging strain (red indicates AMR genes, yellow indicates insertion sequences, and gray indicates other genes). AMR, antimicrobial resistance.
