Disclaimer: Early release articles are not considered as final versions. Any changes will be reflected in the online version in the month the article is officially released.
Volume 32, Number 4—April 2026
Research
Confirming ERVEBO Vaccination to Support Ebola Virus Surveillance
Figure 1

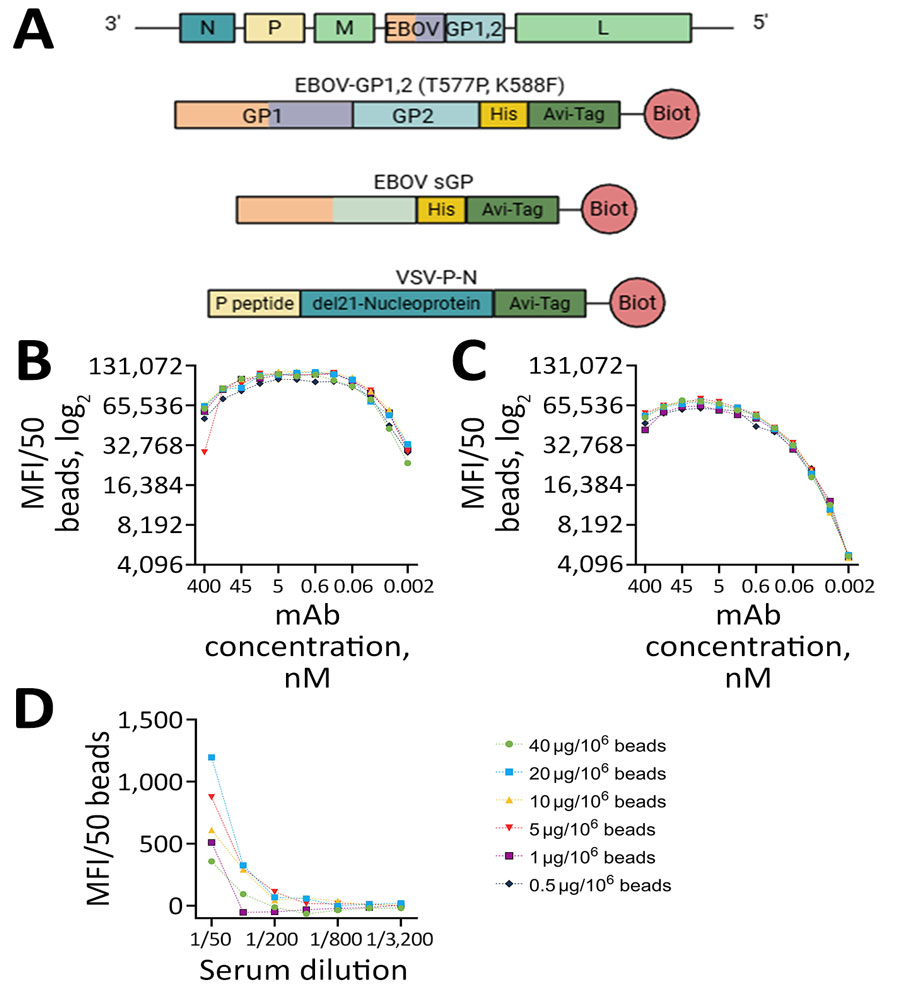

Figure 1. Antigen selection and assay optimization for study of development of multiplex assay to confirm Ebola vaccination. A) Schematic illustration of the rVSV∆G-ZEBOV-GP genome and proteins used in the assay design. Orange indicates the shared portion in GP1 and sGP. del21-nucleoprotein denotes the deletion of the N terminal 21 amino acids of VSV nucleoprotein. B–D) The effect of coupling protein concentration on detection was measured as MFI/50 beads by using mAb114 for EBOV GP1,2 (B) and EBOV sGP (C) and a serum sample from an ERVEBO vaccinee for VSV-P-N (D). Figure created using BioRender (https://www.biorender.com). Avi-tag, Avidin tag; Biot, protein biotinylation; EBOV, Ebola virus; GP, glycoprotein; His-tag, histidine tag; L, large RNA polymerase; M, matrix; mAB, monoclonal antibody; MFI, mean fluorescence intensity; N, nucleocapsid; P, phosphoprotein; P peptide, the first 60 amino acids of the VSV phosphoprotein; rVSV∆G-ZEBOV-GP, recombinant vesicular stomatitis virus where VSV glycoprotein G gene is deleted and replaced with the Ebola virus glycoprotein gene; sGP, secreted glycoprotein; VSV, vesicular stomatitis virus; VSV-P-N, vesicular stomatitis virus nucleoprotein N-terminally fused with P peptide.
