Volume 17, Number 3—March 2011
Research
Monitoring and Characterization of Oseltamivir-Resistant Pandemic (H1N1) 2009 Virus, Japan, 2009–2010
Figure 3

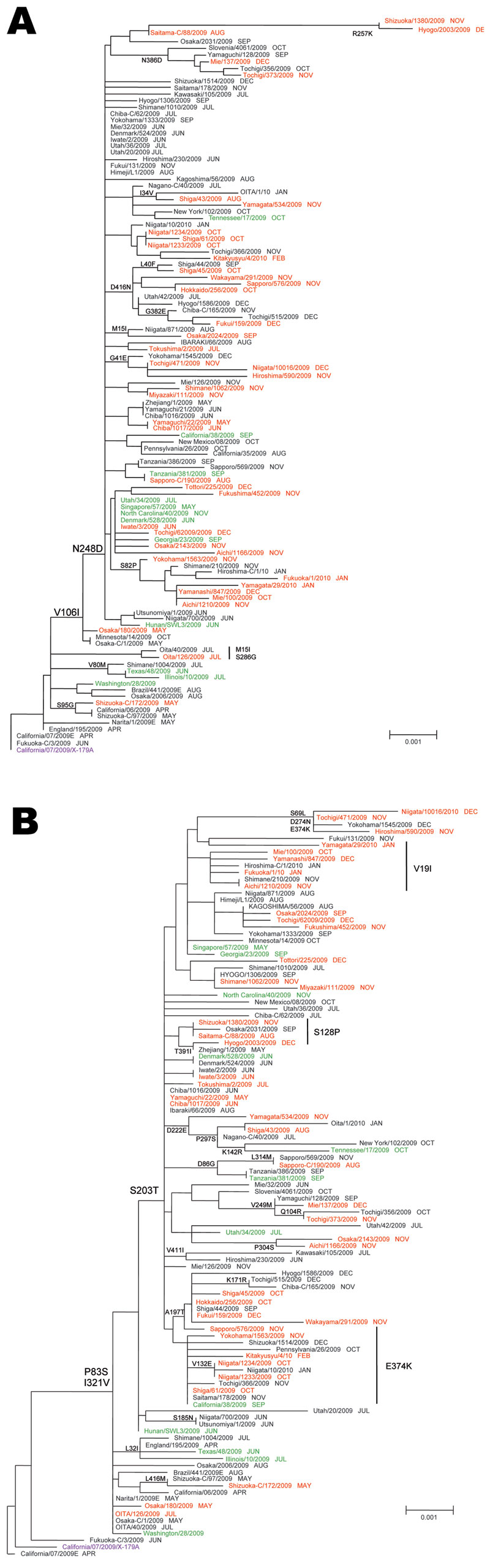

Figure 3. Phylogenetic analysis of influenza pandemic (H1N1) 2009 viruses neuraminidase (NA) (A) and hemagglutinin (HA) genes (B). Most pandemic (H1N1) 2009 viruses possessed the amino acid substitutions S203T in HA and V106I and N248D in NA. Red, oseltamivir-resistant pandemic (H1N1) 2009 from Japan; green, oseltamivir-resistant pandemic (H1N1) 2009 from outside Japan; black, oseltamivir-susceptible (OS) pandemic (H1N1) 2009; purple, 2009–10 current vaccine strains. The sampling month of each isolate is listed following the strain name. The phylogenetic tree of NA and HA genes was constructed by using the neighbor-joining method. Scale bars indicate nucleotide substitutions per site.
1Members of the Influenza Virus Surveillance Group of Japan are listed at the end of this article.
